Sogebox V3

Sogebox V3

DANS Mechanical design
portfolio
Client :
Sogemap
À propos du projet

Our mechanical design office participated in the production of the Sogebox V3.

The SOGEBOX system in polypropylene, made in France, is composed of Ultra Light Alveolar Structures. It allows the creation of buried basins for the retention and drainage of rainwater.

From the specifications Sogemap commissioned us to:

  • Design the entire product in 3D (CAD),
  • Looking for solutions,
  • Technical feasibility phase,
  • Development phase,
  • Create 2D plans and coast chains,
  • Make prototypes,
  • Structure calculation (Material Strength)
  • Rheology calculation

Find the technical sheets as well as the other products of the SOGEMAP company on their website.

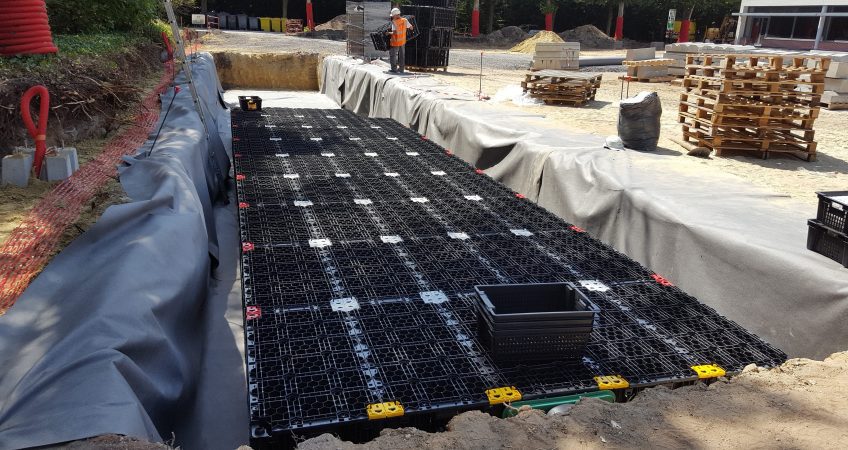

sogebox cellule eau
